Part Number: HAJW22

Description

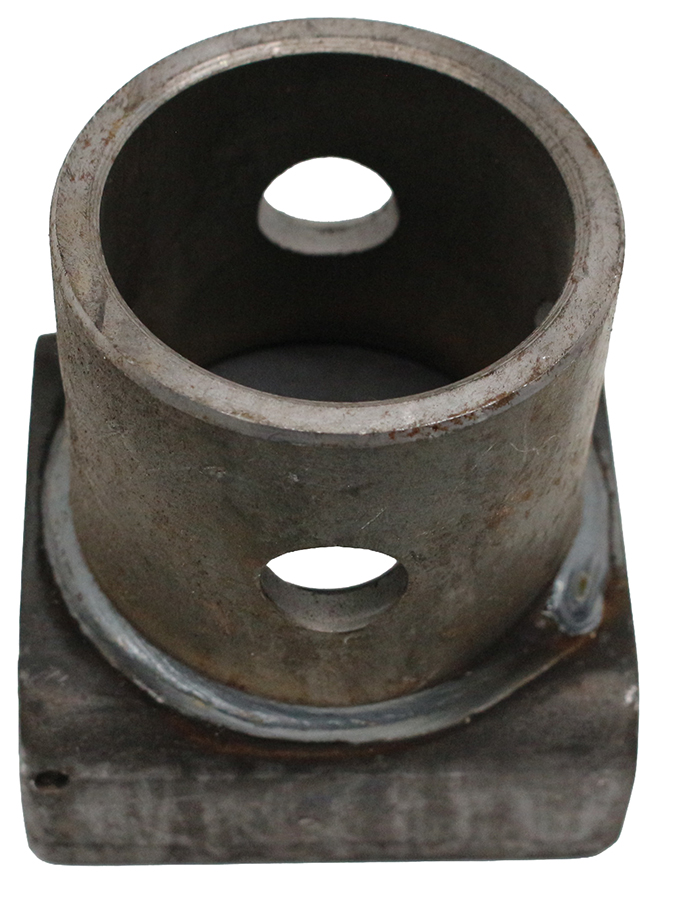

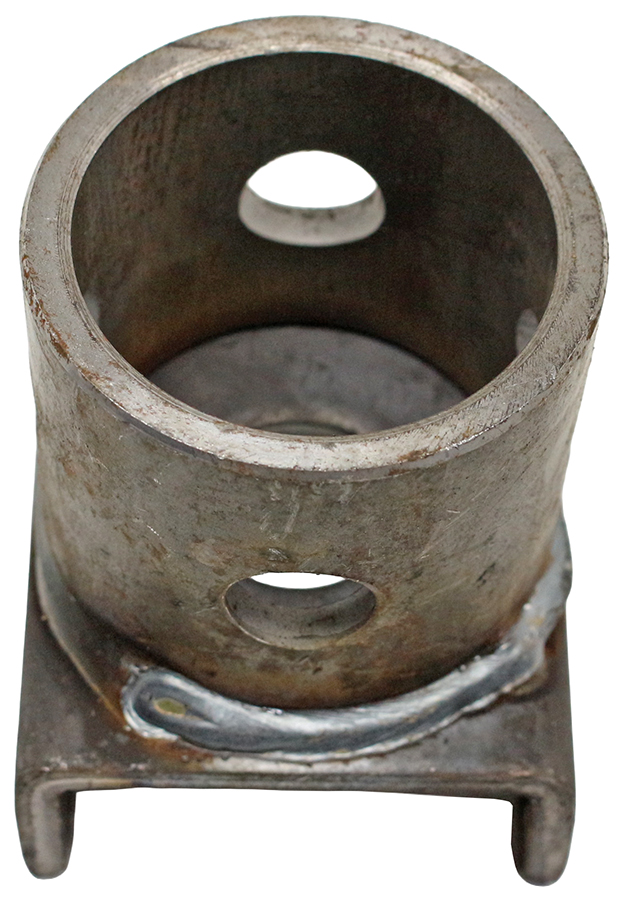

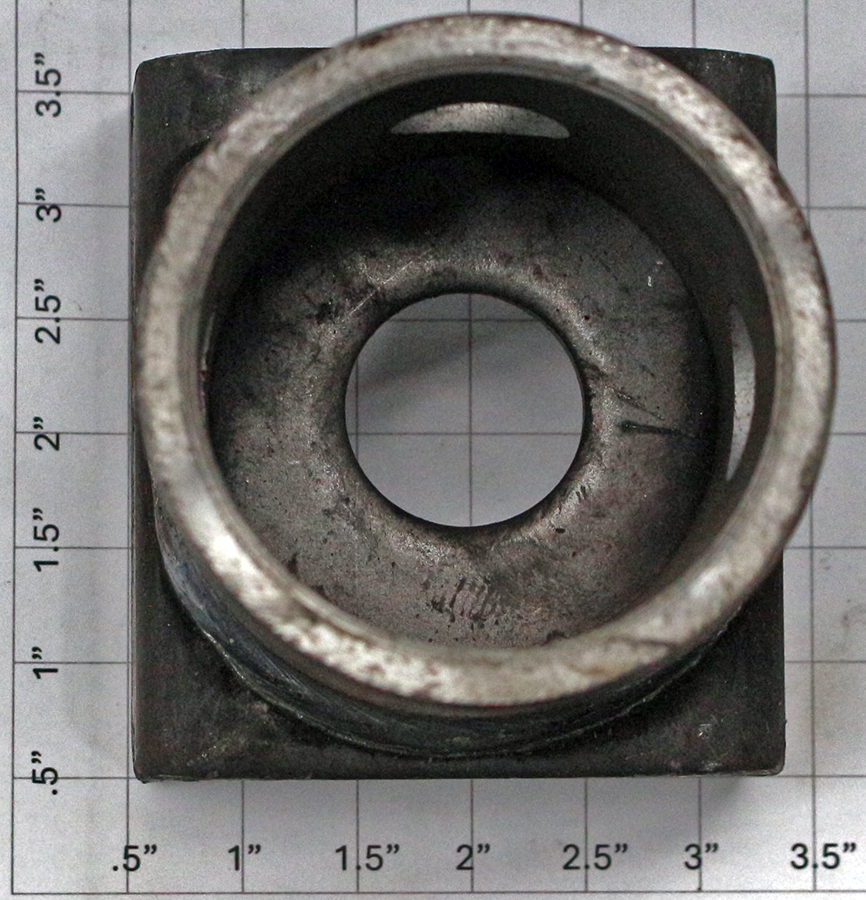

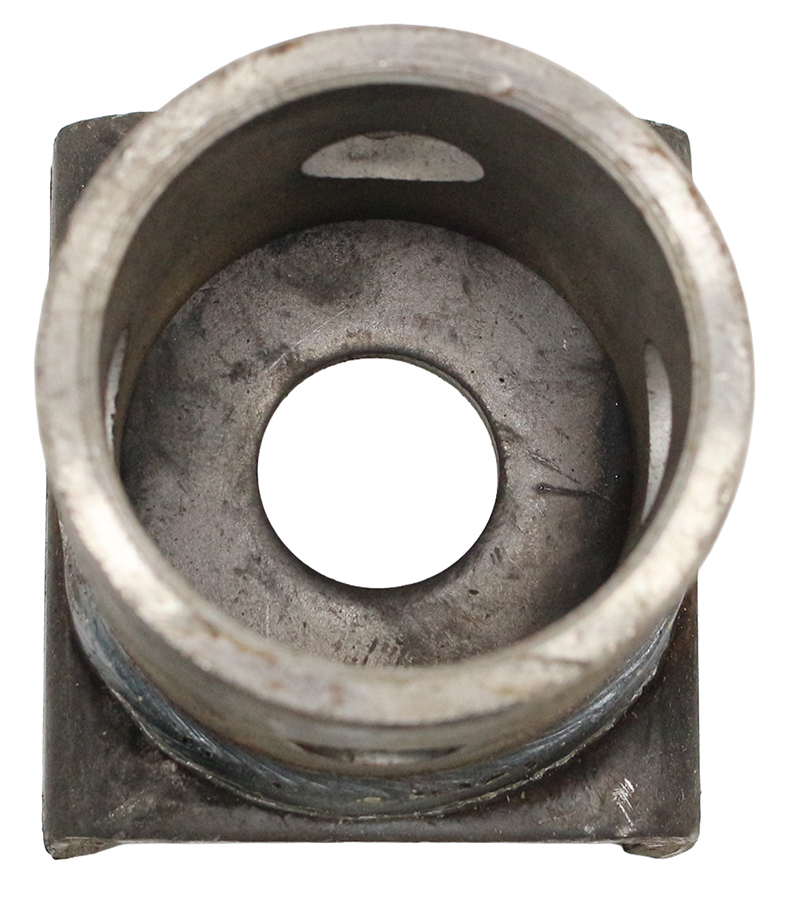

Weld-on Swivel Mount, ⅝ Pin Hole, 2-¼” ID Channel

• Ram Part # TJP-OP58

• 2-½” OD Weldon channel for 2-¼” Jack

• 2″ ID Collar

• Pin hole: ⅝”

• Length:

  • Longer edge to center of pin hole: 1″

  • Shorter edge to center of pin hole: 1“

• Depth of end without welded bracket: 2-⅜”

• Depth of end with welded bracket: 3-½“

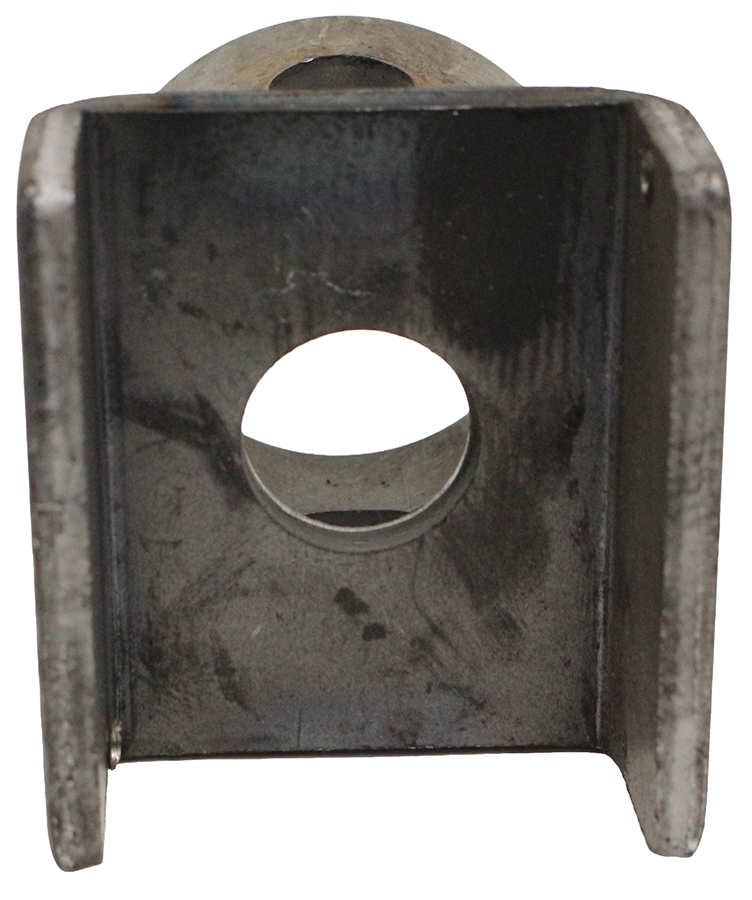

• Bracket dimensions:

  • Outer width: 2-¾“

  • Inner width: 2-¼“

  • Height: 3″

  • Depth from bracket to outer weld: 2″
